Aerogel is an ultralight, low-density synthetic porous material, often referred to as "frozen smoke" or "solid cloud." It is produced by replacing the liquid component in a gel with gas while maintaining the material's structural integrity, resulting in a solid that consists of up to 99.8% air. This unique composition gives aerogel exceptional thermal performance in an extremely lightweight form.
The JT20 Aerogel Insulation Roll is engineered to deliver superior thermal protection in demanding environments. It is available in standard thicknesses of 5 mm, 6 mm, and 10 mm, with full customization supported to meet specific project requirements.
Designed for industrial applications—including the oil and gas sector and LNG insulation systems—the JT20 roll operates reliably across a broad temperature range, from -200°C to +200°C. Whether in pipelines, storage tanks, or cryogenic equipment, it provides consistent energy efficiency and safety under extreme conditions.
Key Advantages:
Low dust aerogel technology
Extremely low thermal conductivity and high energy saving
Fire resistance Grade A rating
Superior resistance to breakage and physical abuse
Fast and easy installation process
Lightweight design suitable for pre-insulation
Effective corrosion inhibition properties
Safe and environmentally friendly material
Technical Parameters
Nominal Thickness
5mm, 6mm, 10mm
Density
170 kg/m³
Suggested Temperature
-200°C to 200°C
Fire Rating
Class A
Thermal Conductivity (@25°C)
≤0.017 W/mK
Width / Length
1500mm / 30m, 42m long
Hydrophobicity
≥98%
Flexibility
Flexible
Note: Roll fabrication for customized dimensions is available upon request.
Applications
This product significantly reduces cold loss and BOG (flash steam) loss, making it ideal for:
Cryogenic pipeline equipment
Medium and low temperature pipelines
Cold air fans and exhaust pipes
LNG storage and transportation systems
Liquid nitrogen & oxygen storage equipment
Industrial Application Scenarios
Packaging & Delivery
Samples are available in 300mm*300mm sizes for standard thickness evaluation.

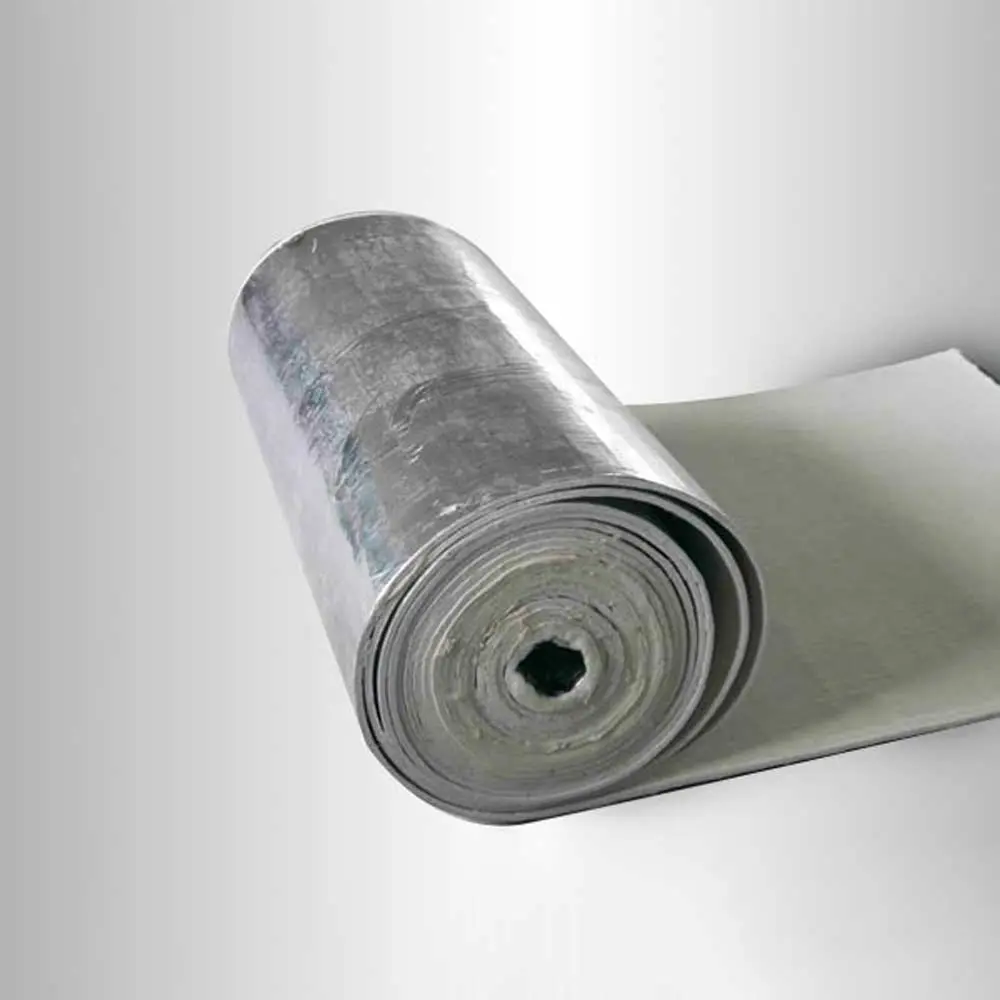

Standard Packing In Roll
Warehouse Inventory

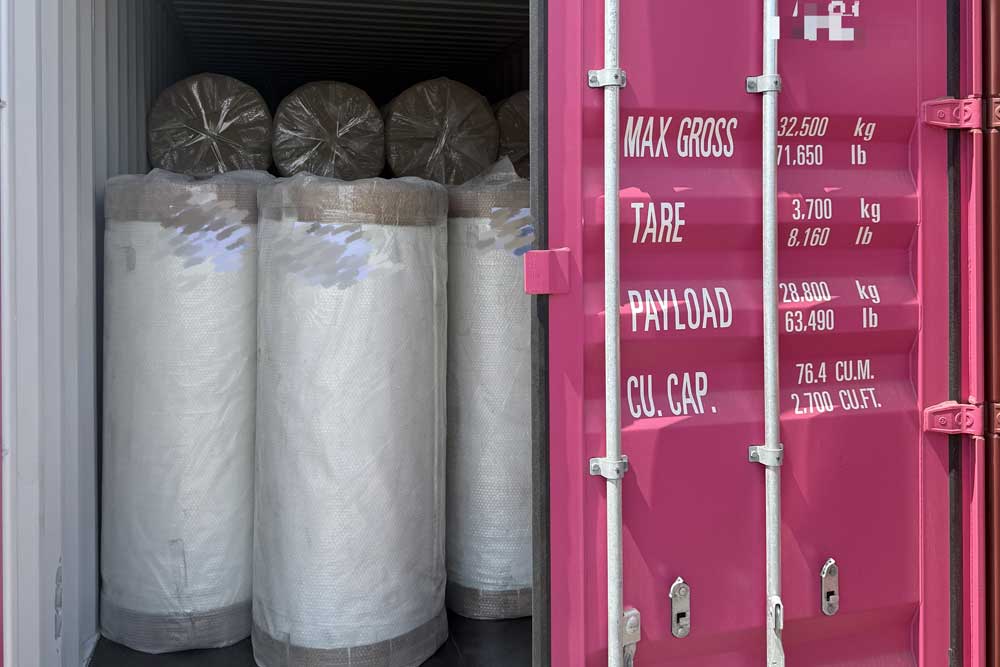

Loading and Shipping
Frequently Asked Questions
What is the temperature range for JT20 Aerogel Insulation?
The JT20 roll is designed to perform reliably in extreme environments ranging from -200°C to +200°C.
What thicknesses are available for the aerogel rolls?
Standard thicknesses include 5mm, 6mm, and 10mm. We also support full customization for specific project dimensions.
Is the JT20 insulation material fireproof?
Yes, the material has a Class A fire rating, providing excellent fire resistance for industrial safety.
How does the material handle moisture?
The JT20 Aerogel Insulation features a high hydrophobicity rating of ≥98%, ensuring performance in damp or cryogenic conditions.
What are the primary applications for this product?
It is primarily used for LNG storage, cryogenic pipelines, liquid nitrogen/oxygen equipment, and medium-to-low temperature industrial exhaust pipes.
Does the material protect against corrosion?
Yes, the product is engineered with corrosion inhibition properties to protect the underlying infrastructure and pipelines.
