Custom OEM Aerogel Insulation Blanket For Thermal Insulation Manufacturers, Factories

Aerogel, often referred to as "frozen smoke" or "solid cloud," is an ultralight, low-density synthetic porous material. Through a specialized drying process, the liquid component of a gel is replaced with gas while preserving its solid microstructure—resulting in a material composed of up to 99.8% air. Renowned for its exceptional thermal performance and minimal weight, aerogel is widely used across multiple sectors.

In construction, it provides ultra-thin insulation for walls, roofs, and windows, enhancing energy efficiency without sacrificing space. Industrial applications include insulating pipelines, tanks, and equipment to improve safety and reduce energy consumption. Aerogel also plays a critical role in aerospace, automotive, and cryogenic systems, delivering reliable protection under extreme temperatures. Additionally, it is used in energy storage systems to prevent thermal runaway in electric vehicle (EV) batteries, as well as in specialized clothing and electronics for advanced thermal management.

Product Description

Key Technical Performance
Low dust aerogel technology
Extremely low thermal conductivity & high durability
Fire resistance Grade A rating
Superior resistance to breakage and physical abuse
Fast and easy installation process
Lightweight design allows for pre-insulation
Advanced corrosion inhibition properties
Safe and environmentally friendly materials
Technical Parameters
Nominal Thickness 3mm, 5mm, 10mm
Density 200 kg/m3
Suggested Temperature -165℃ to 650℃
Fire Rating Class A
Thermal Conductivity ≤0.021 W/mK
Width/Length 1500mm / 28m, 36m, 42m long
Hydrophobicity ≥98%
Flexibility Flexible

*Note: Roll fabrication for customized dimensions is available.

Industrial Applications

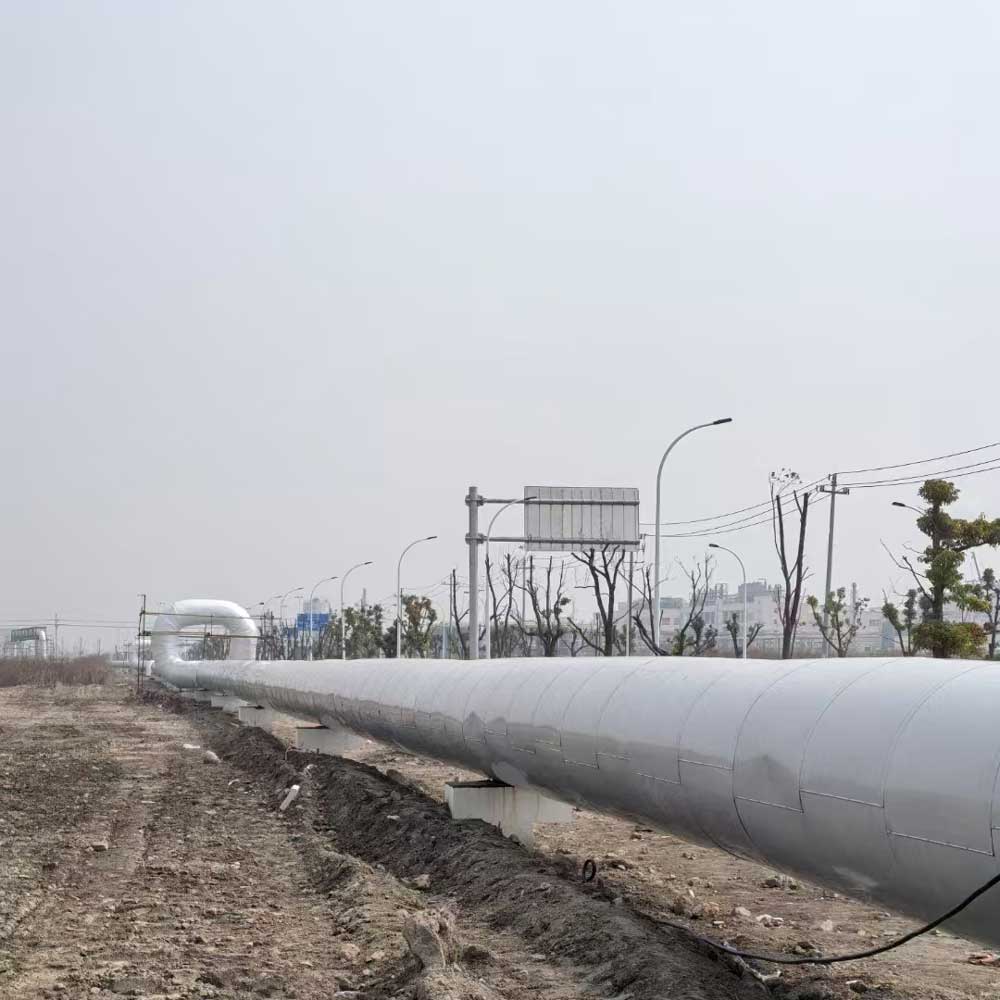

Oil, Gas, & Refining
Oil, Gas, & Refining

Used for insulating pipelines and vessels in high-temperature environments, reducing heat loss and energy consumption.

Liquefied Natural Gas
Liquefied Natural Gas (LNG)

Provides stable performance and flexibility in cryogenic and dual-temperature applications.

Power Generation
Power Generation

Extends to insulating components in power systems, reducing energy loss and improving efficiency.

Aerospace
Aerospace

Utilized in spacecraft and satellites for its lightweight, ultra-thin, and highly efficient insulation properties.

Automotive
Automotive

Applied in engine compartments and exhaust systems to reduce vehicle weight and improve fuel efficiency.

Packaging & Samples

Samples are always available with 300mm*300mm for standard thickness.

Packing In Roll

Packing In Roll

Roll Warehouse

Roll Warehouse With Fast Delivery

Loading In Truck

Loading In Truck

Frequently Asked Questions
What are the main advantages of using this aerogel insulation?
The main advantages include extremely low thermal conductivity, Grade A fire resistance, high durability, lightweight design for easy installation, and excellent hydrophobicity.
What is the temperature range this product can withstand?
This aerogel blanket is suitable for a wide temperature range, from cryogenic environments at -165℃ up to high-temperature applications of 650℃.
Is the insulation material waterproof?
Yes, it has a hydrophobicity rating of ≥98%, which means it is highly resistant to water and moisture, preventing corrosion under insulation (CUI).
Can I get customized sizes for my project?
Yes, roll fabrication for customized dimensions is available to meet specific industrial requirements. Standard thicknesses include 3mm, 5mm, and 10mm.
How is the product typically packaged for delivery?
Products are professionally packed in rolls and stored in a warehouse for fast delivery via trucks. Small 300mm*300mm samples are also available for testing.
Which industries commonly use this type of insulation?
It is widely used in Oil & Gas refining, LNG (Liquefied Natural Gas) facilities, Power Generation plants, Aerospace engineering, and the Automotive industry.
