JTA Series Aluminum Foil Aerogel Insulation Blanket combines aerogel core with reinforced aluminum foil layer. Featuring special industrial adhesives for enhanced tensile strength and temperature stability. Water-resistant, low-dust design ensures easy installation in industrial and construction settings.

Send Inquiry

Product Description

JTA Series represents an advanced composite insulation solution that integrates high-performance aerogel blanket with a protective aluminum foil layer. Through specialized industrial-grade adhesives, this product achieves exceptional structural integrity and temperature stability. The aluminum foil surface significantly reduces dust release while providing moisture resistance during installation. Designed for demanding applications, JTA Series maintains optimal thermal performance across various industrial environments and temperature conditions.

Key Advantages

✓
Enhanced Structural Integrity: Special industrial adhesives increase inter-weaving and tensile strength, ensuring high stability under any working temperature.
✓
Superior Surface Protection: Aluminum foil layer minimizes dust generation, resists water exposure during installation, and simplifies maintenance.
✓
Exceptional Thermal Performance: Extremely low thermal conductivity enables maximum energy efficiency and consistent heat management.
✓
Grade A Fire Safety: Delivers reliable fire resistance for critical applications and safety compliance.
✓
Excellent Durability: Maintains structural integrity during shipping, fabrication and installation, resisting physical damage.
✓
Installation Efficiency: Lightweight, flexible design enables quick installation and pre-insulation capabilities.

Technical Parameters

Items Parameters
Part No. JTA
Thickness 3/6/10 mm, Customizable
Width 1400/1500 mm, Customizable
Density 200±20 kg/m³
Temperature Endurance (-200) - 350 ℃
Thermal Conductivity (25 ℃) 0.021 W/m.K
Dimensional Stability (max) 0.01
Compressibility 10%, 60 KPa (Min); 25%, 120 KPa (Min)
Hydrophobicity >99%

Technical Excellence

The JTA Series combines the exceptional insulating properties of aerogel with the practical benefits of aluminum foil, creating a versatile solution that addresses multiple industrial challenges. Its unique composition ensures long-term performance stability while meeting the rigorous demands of various operational environments.

Primary Applications

Industrial Facilities Oil Refineries Power Plants Building Construction Energy Storage Systems High-Temperature Equipment Transportation Industry

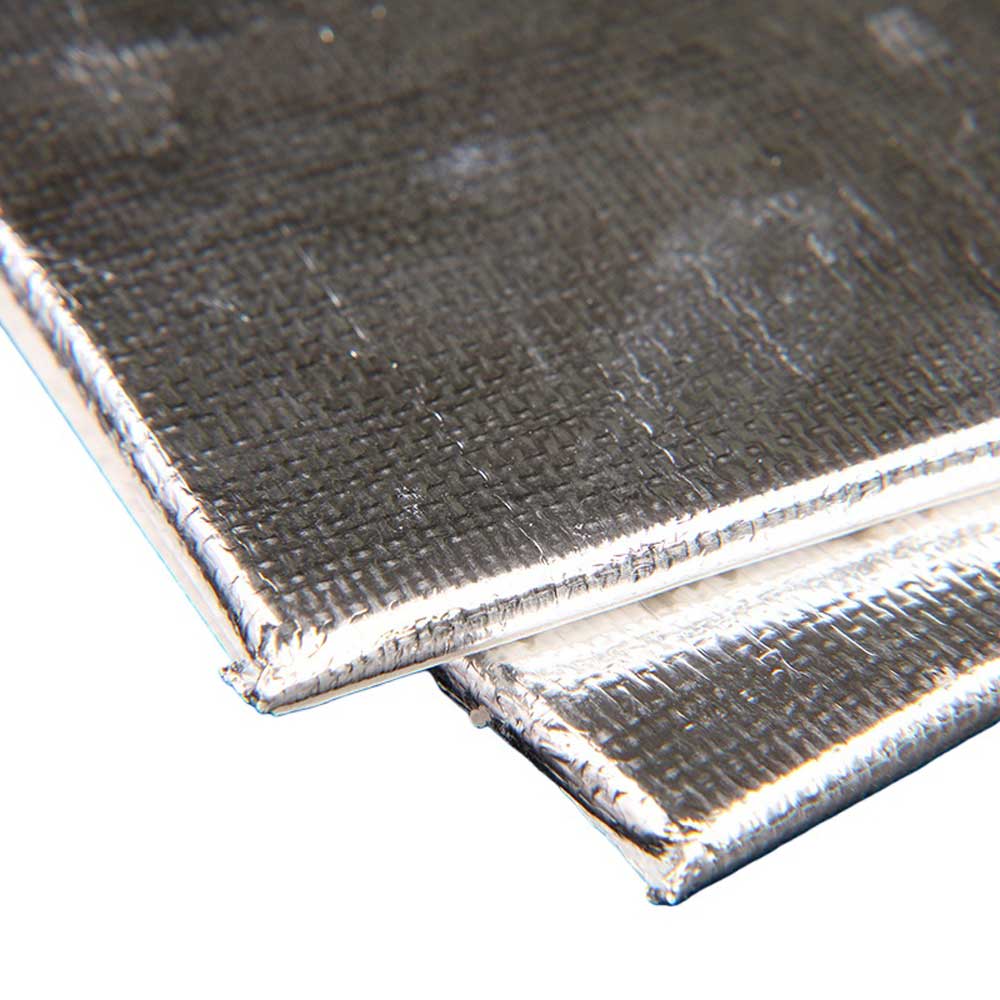

AEROGEL-Insulation-Panel-with-Aluminum-Foil1

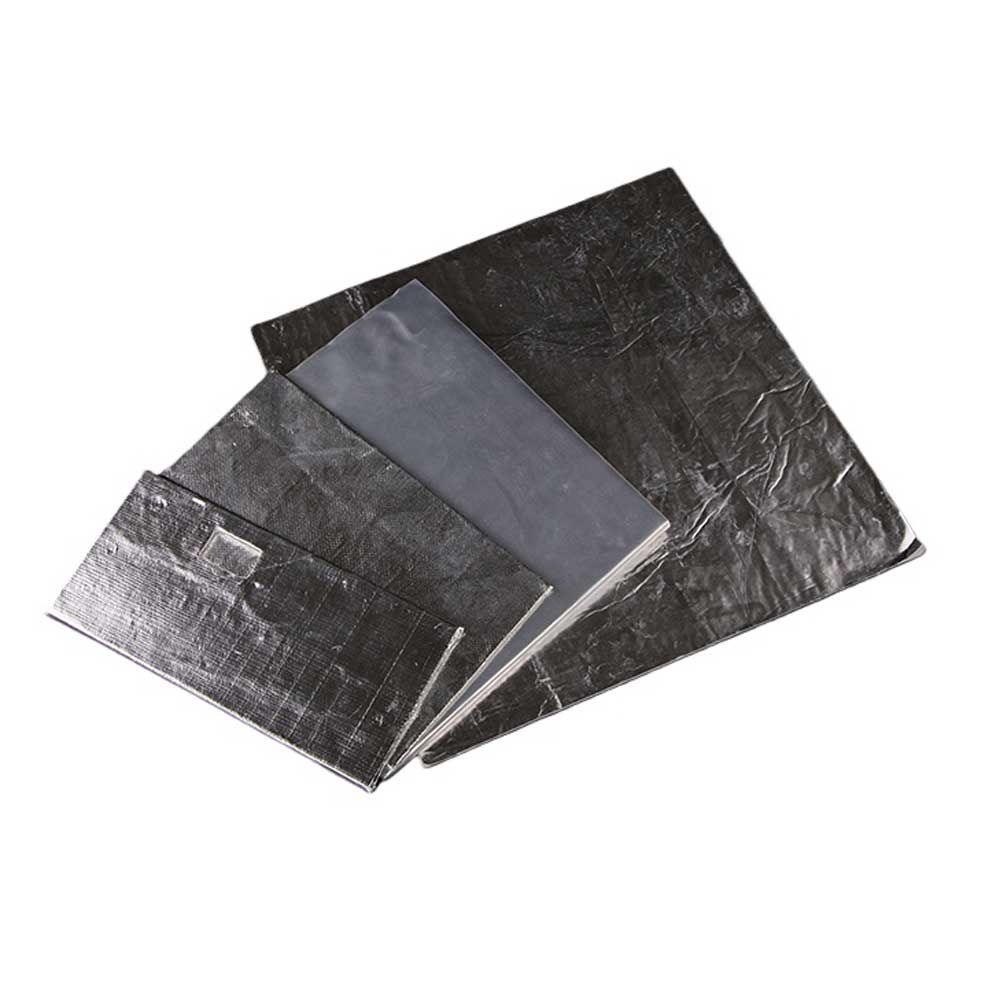

AEROGEL-Insulation-Panel-with-Aluminum-Foil2

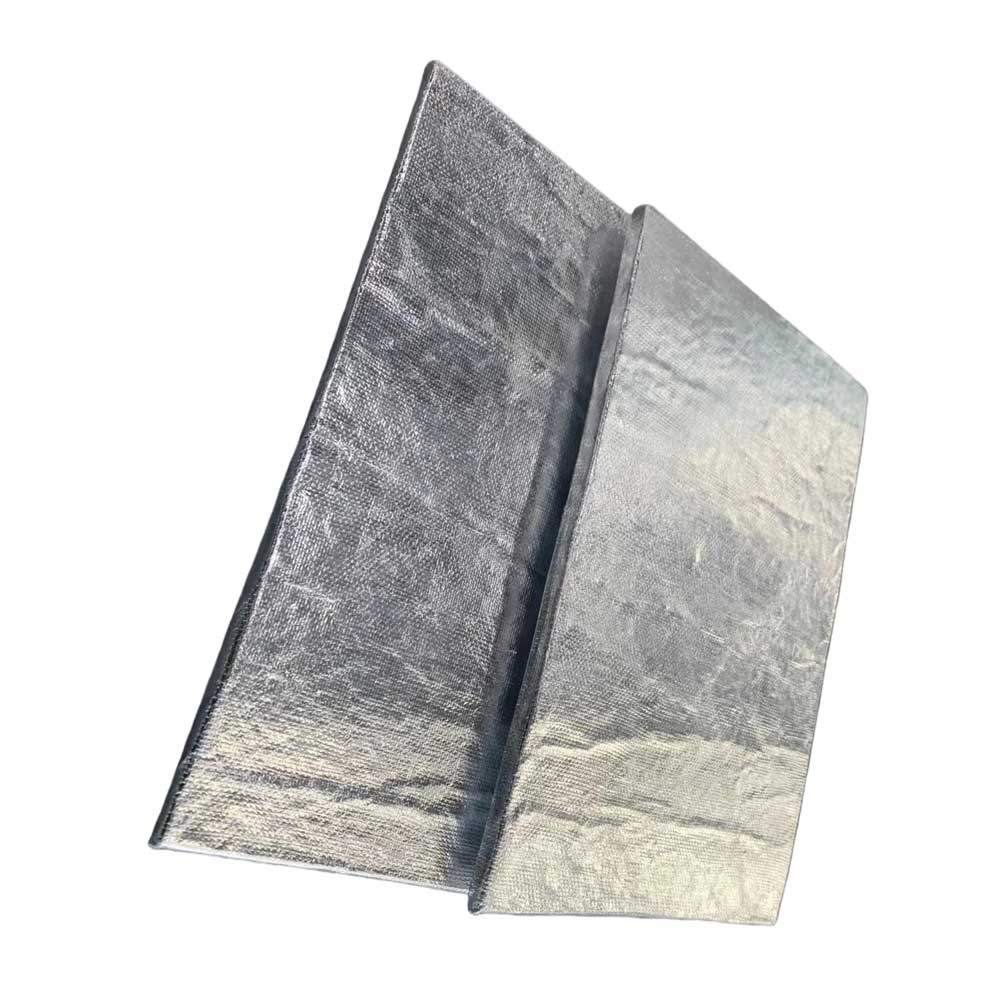

AEROGEL-Insulation-Panel-with-Aluminum-Foil3

Frequently Asked Questions

What is the main benefit of the aluminum foil layer?
The aluminum foil layer acts as a protective barrier that minimizes dust release, provides moisture resistance, and increases the physical durability of the aerogel blanket during installation and maintenance.
What is the working temperature range for JTA Series?
The JTA Series is designed to withstand extreme temperatures ranging from -200°C up to 350°C, making it suitable for both cryogenic and high-heat industrial applications.
How does the thermal conductivity compare to traditional materials?
With a thermal conductivity of only 0.021 W/m.K at 25°C, the JTA Series provides superior insulation performance, allowing for much thinner layers compared to traditional insulation while maintaining the same thermal resistance.
Is the material resistant to water?
Yes, the product features high hydrophobicity (>99%), meaning it effectively repels water and prevents moisture-induced performance degradation or corrosion under insulation (CUI).
Can the thickness and width be customized?
While standard thicknesses are 3mm, 6mm, and 10mm, and standard widths are 1400mm or 1500mm, both dimensions can be customized to meet specific project requirements.
Is the JTA Series environmentally friendly?
Yes, the JTA Series is manufactured using eco-friendly compositions and safe materials, ensuring it is environmentally responsible for use in green building and sustainable industrial projects.
